Roborock S8, S8 Pro, S8 Max, S8 MaxV, S7 Max, S7 MaxV, Q Revo, Q5, Q7 & Q8 Serieses | Original Spare & Repair Parts: Common LDS Laser Lidar Sensor

OVERVIEW

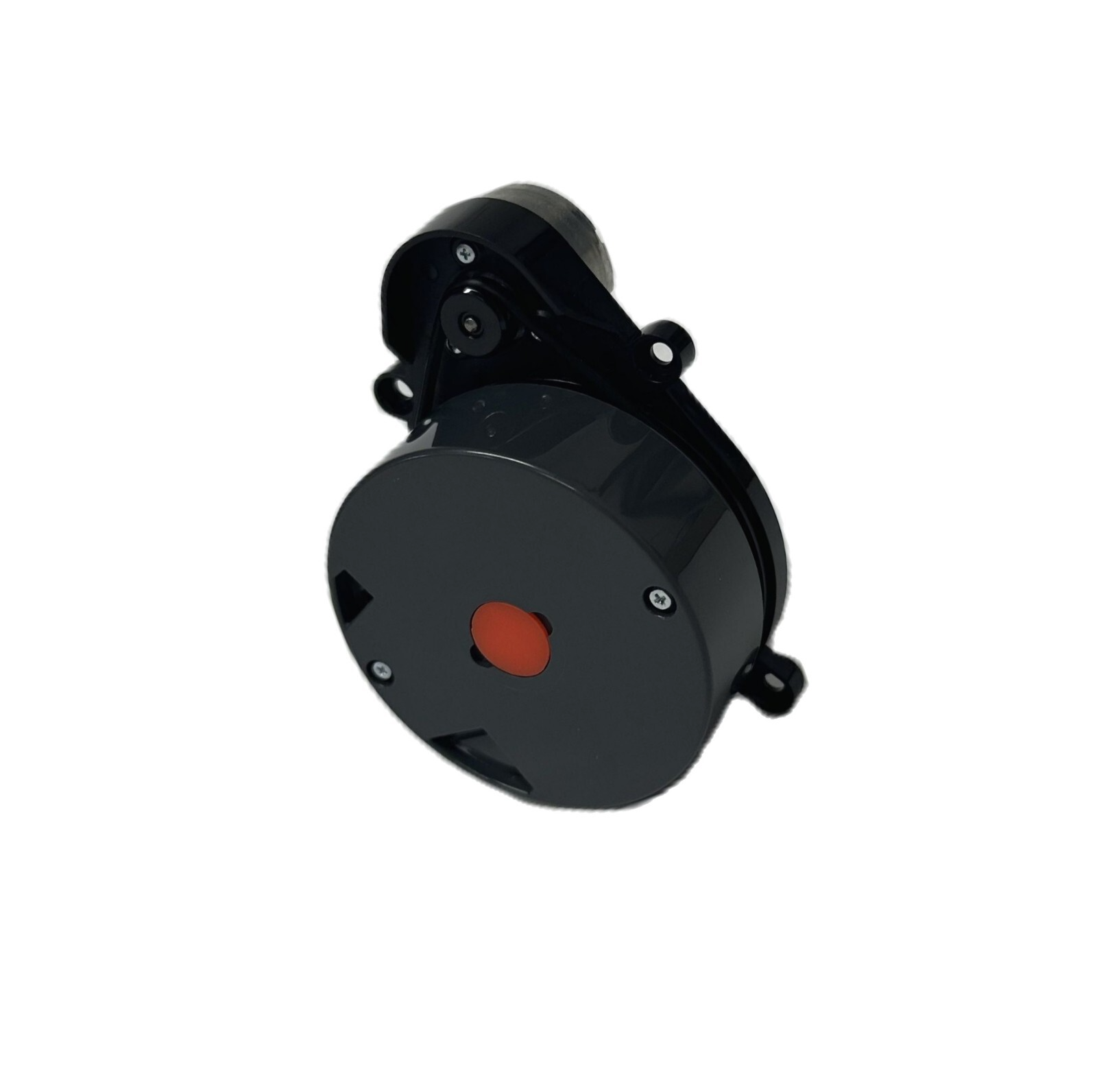

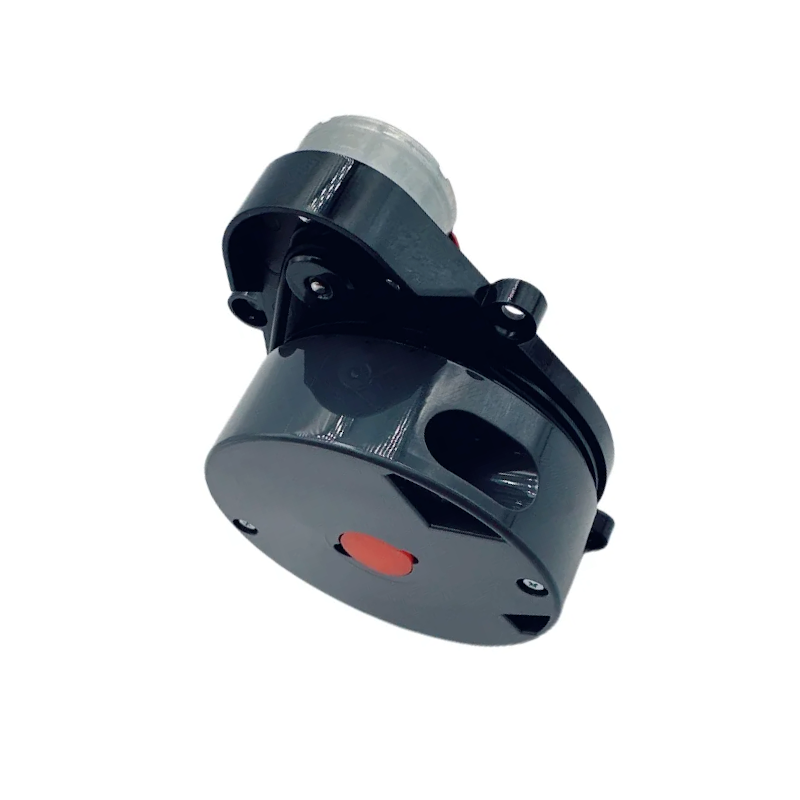

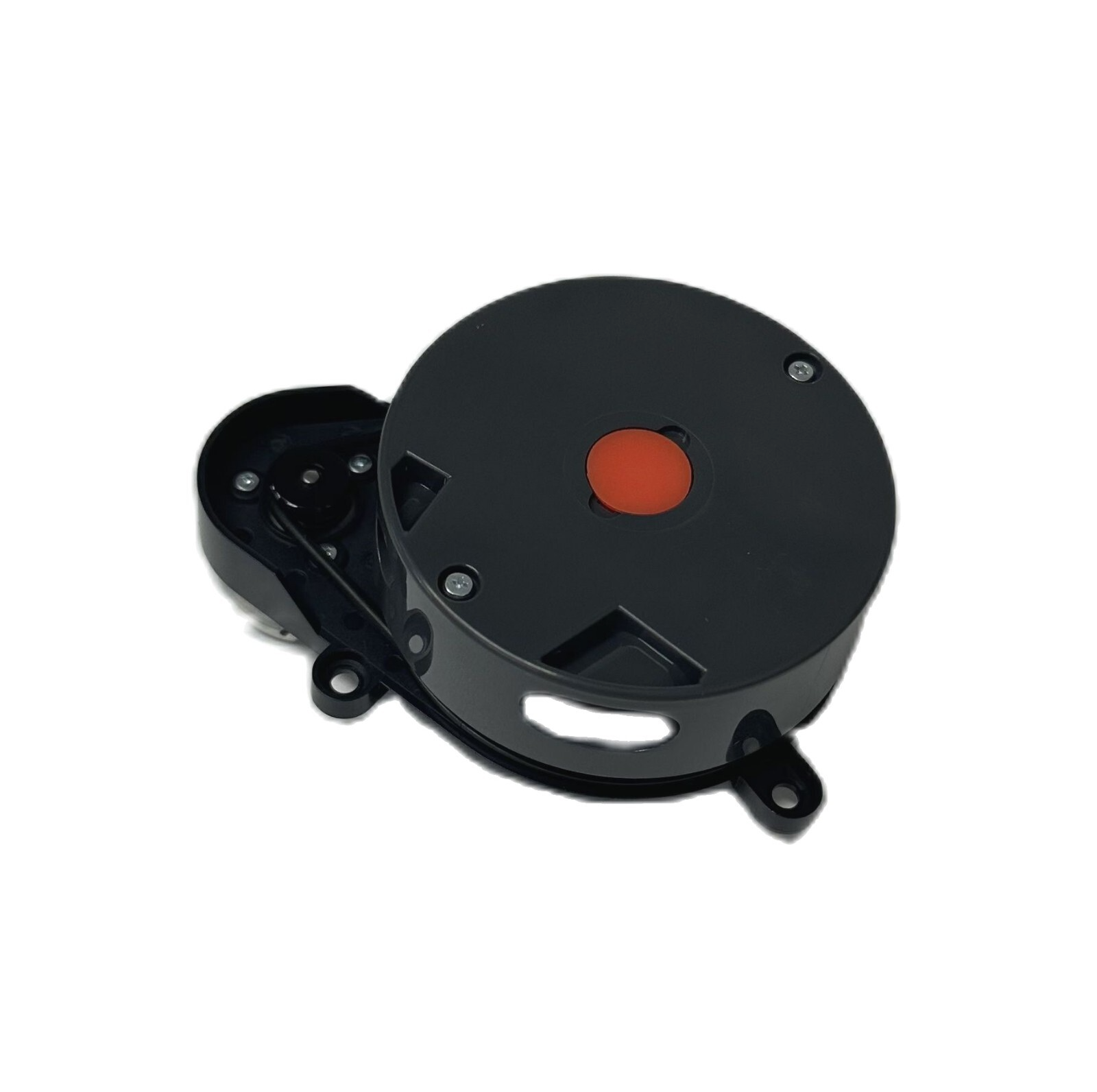

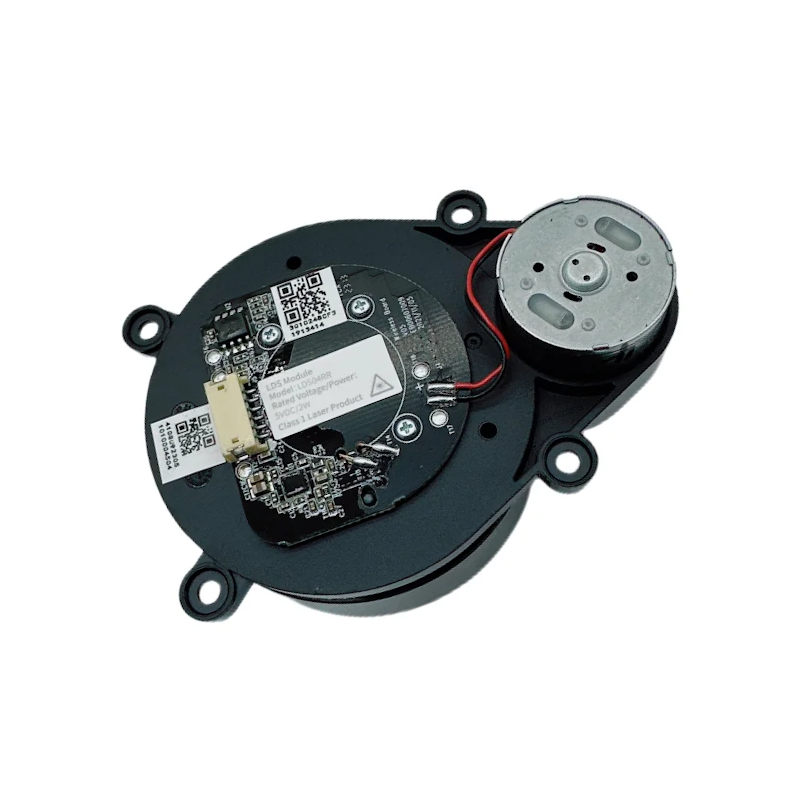

This is a Laser Distance Sensor, whose technology is called "LIDAR".

Model number is usually LDS04RR and its color this time, in this series is always in black, also for the white model.

This LDS module is smaller than the LDS module of the older models, and is installed in the following models:

• Roborock S8 / S8+
• Roborock S8 Pro Ultra

• Roborock S7 Max Ultra
• Roborock S7 MaxV Ultra
• Roborock Q7
• Roborock Q7 Max
• Roborock Q5
• Roborock Q Revo
• Roborock G10

• Roborock Q8 Max
• Roborock Q8 Max+

• Roborock S8 Max Ultra
• Roborock S8 MaxV Ultra



A malfunction that requires LDS replacement is usually Error 1.

* Please note: The models marked in red can be equipped with one of two types of LDS, large or small. This varies depending on where you purchased your robot.

A model that worked with one type of LDS (large, for example) will be able to work with a small LDS, but this requires some kind of adapter - and it is better to avoid this and verify the type of LDS before purchasing.

We also sell the larger LDS in our store. The larger LDS is installed on many other earlier models.

Note: Such procedures (replacing internal parts) are supposed to be performed by licensed technicians, laboratories, or at least individuals with a background in the field.
The video below demonstrates the operation on older model.
